LED PKG

옵토엘이디의 LED 제품입니다.


LED PACKAGE

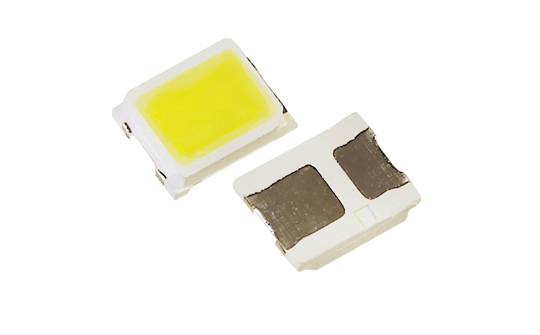

[LED Package] 2835
  • Size: 2.8x3.5x0.7mm
  • High Brightness up 26lm
  • CCT: 3000K. 4000K, 6500K
  • CRI 80

2835 0.2W CRI 80

Part No. Luminous Flux(lm) Voltage(V) CCT(K) Emitting Angle Forward Current(mA) CRI
E2835US24 23~27 3.0~3.4 3000 120 60 80
E2835UN24 23~27 3.0~3.4 4000 120 60 80
E2835UW24 23~27 3.0~3.4 6500 120 60 80

2835 0.5W CRI 80

Part No. Luminous Flux(lm) Voltage(V) CCT(K) Emitting Angle Forward Current(mA) CRI
E2835US28 55~65 3.0~3.4 3000 120 150 80
E2835UN28 55~65 3.0~3.4 4000 120 150 80
E2835UW28 55~65 3.0~3.4 6500 120 150 80
