LED PKG

옵토엘이디의 LED 제품입니다.


LED PACKAGE

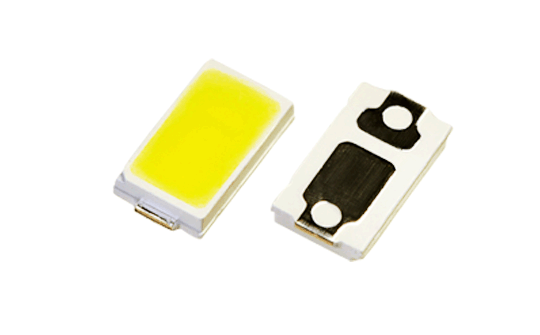

[LED Package] 5630
  • Size: 5.6x3.0x0.85mm
  • High Brightness up 65lm
  • CCT: 3000K. 6500K
  • CRI 70 , CRI 80

MLS 5630 0.2W

Part No. Luminous Flux(lm) Voltage(V) CCT(K) Emitting Angle Forward Current(mA) CRI
E5630US50 20~24 3.0~3.4 3000 120 60 70
E5630UW50 20~24 3.0~3.4 6500 120 60 70

MLS 5630 0.5W

Part No. Luminous Flux(lm) Voltage(V) CCT(K) Emitting Angle Forward Current(mA) CRI
E5630US60 55~65 3.0~3.4 3000 120 150 80
E5630UW60 55~65 3.0~3.4 6500 120 150 80
